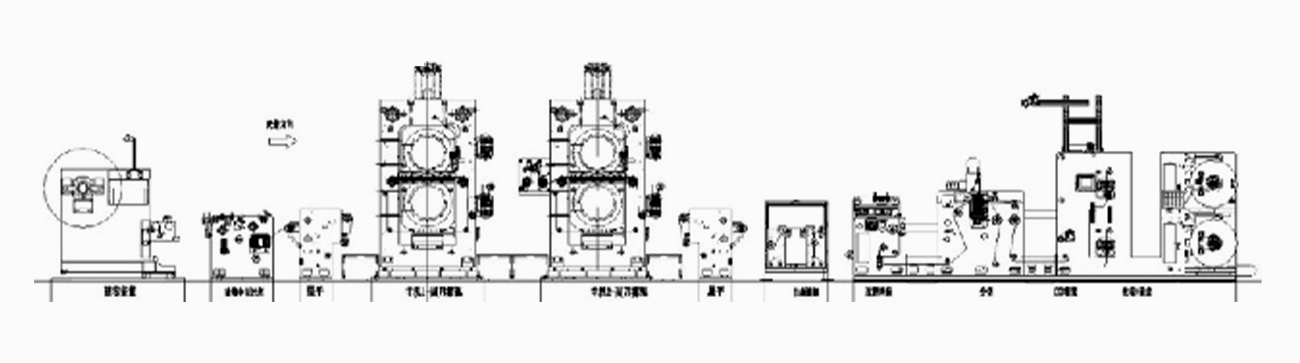

Roller Slitting Machine CCD Detection System/Labeling Machine
Name | Parameter |
Detection speed: | ≤110m/min |
Detection width: | 700mm-1500mm |
Resolution: | 0.1mm |
Dimensional detection accuracy: | ±0.1mm (horizontal) |
Defect Detection Accuracy: | 0.3mm*0.3mm |
Overkill/missing rate: | Missed judgment rate ≤ 0.1%, false positive rate ≤ 0.5% |
The entered model switching ≤5 minutes | |
Equipment Dimensions: | Compatible device manufacturers |
Test content: | |
1) Width: | Full width, AB surface coating width, blank width, ceramic width |
2) Alignment: | The station measures the alignment of the AB surface. |
3) Defect detection: | Dirt, surface damage, scratches, streaks, bubbles, leaking metal. |
Labeling accuracy: | ±10mm |
1) Process: | Roll Slitting |
